| DLS Power cap 1,0F
Power Cap 1,0F, 20 Volt.
|
|
DLS power cap 1F Power Cap 1F, 20 Volt
| |
|
ENERGY-POWER EP 4X The EP 4 X is a powerful amplifier delivering 4 x 160W (RMS) into a 2 Ohm load. Thanks to its four separate channels, it provides many different system design possibilities.
Pre-amplified as well as hi-level inputs offer the opportunity for the EP 4 to be interfaced with any head unit, including factory OEM sources.
The EP 4 X boasts extreme reliability thanks to its dual layer FR-4 PCB with thick 70µm copper traces, along with robust copper bars for high current transfer paths.
The B channels feature a Bass Boost circuit adjustable within a range of 0 to12 dB at 45 Hz to offer a deep, solid bass with control. The advanced electronics and optimized cooling system allow the EP 4 X to provide high power, even under difficult conditions.
power:
100W*4 4ohm
160*4 2ohm
160*4 2ohm + 320W*1 4ohm
320W*2 4ohm
| |
|
ENERGY-POWER EP 2X The EP 2 X is a very powerful stereo amplifier delivering 2 x 350W (RMS) into a 2 Ohm load. It can also be bridged into mono delivering up to 700W (RMS) to drive a subwoofer. Pre-amplified inputs as well as hi-level inputs allows the EP 2 X to be interfaced with any head units, including factory OEM sources, making it an ideal choice for system upgrades.
The EP 2 X boasts extreme reliability, thanks to its dual layer FR-4 PCB with thick 70µm copper traces, along with robust copper bars for high current transfer paths.
The Bass Boost system, adjustable within a range of 0 to 12 dB, aids in low frequency enhancement and performance. The advanced electronics and the optimized cooling system allow the EP 2 X to provide high power, even under difficult conditions.
Power:
220W*2 4ohm
350W*2 2ohm
700W*1 4ohm
| |
|
ENERGY-POWER EP 5 The EP 5 is a multi-channel amplifier, offering power output of up to 630W!
Using a special switch for a fast configuration into 3-channel mode, the EP5 delivers
190W x 2 (4 Ohm) + 250W x 1 (2 Ohm).
The C channel is dedicated to drive the subwoofer. For this reason, it features one single high power stage. The power supply section is equipped with two multi-winding toroidal core transformers along with Low ESR 105°C capacitors, ensuring very high efficiency.
The EP 5 boasts extreme reliability thanks to the use of FR-4 double layer PCB material. 70µm thick copper traces in combination with robust copper bars are used for paths with high current transfer.
Advanced electronics and optimized cooling system allow the EP 5 to provide high power, even under difficult conditions.
Power:
60W*4 4ohm + 160W*1 4ohm
95W*4 2ohm + 250W*1 2ohm
190W*2 4ohm + 160W*1 4ohm
190W*2 4ohm + 250W*1 2ohm
| |
|
ENERGY-POWER EP 4 The EP 4 is an amplifier designed to reproduce any musical genres: thanks to its four separate channels, it provides many different system configurations.
Pre-amplified inputs as well as hi-level inputs offer the possibility for the EP 4 to be interfaced with any head units, including factory OEM sources.
EP 4 boasts extreme reliability thanks to the use of FR-4 double layer PCB material. 70µm thick copper traces in combination with robust copper bars are used for paths with high current transfer.
The B channels feature Bass Boost adjustable within a range of 0 ÷ 12 dB at 45 Hz to offer a deep, solid bass with control. Advanced electronics and optimized cooling system allow the EP 4 to provide high power, even under difficult conditions.
power:
60W*4 4ohm
95W*4 2ohm
95W*4 2ohm + 190W*1 4ohm
190W*2 4ohm
| |
|
ENERGY-POWER EP 2 The EP 2 is a stereo amplifier which can be bridged in mono as well; it is the ideal choice to upgrade your factory system: pre-amplified inputs as well as hi-level inputs offer the possibility for the EP 2 to be interfaced with any head units, including factory OEM systems.
The EP 2 boasts extreme reliability thanks to the use of FR-4 double layer PCB material. 70µm thick copper traces in combination with robust copper bars are used for paths with high current transfer.
The Bass Boost system, adjustable within a range of 0 ÷ 12 dB, aids in low frequency enhancement. Advanced electronics and the optimized cooling system allow the EP 2 to provide high power, even under difficult conditions.
Power:
60W*2 4ohm
95W*2 2ohm
190W*1 4ohm
| |
|

ENERGY-POWER EP 1 D The EP 1 D is a mono, 1000W (RMS) amplifier.
The special EP LINK feature provides the ability to “strap” two or more pairs of EP 1 D into a bridged mode to achieve power output of up to 1700W (RMS).
The EP 1 D features a Synchro D-Class technology, where the Output Stage PWM Driver Module generates its own digital clock and also generates the Power Supply PWM Driver clock in order to synchronize both of the stages, avoiding noise being generated inside the audio band. This technology has allowed an extremely high Signal/Noise ratio of 100dBA!
The power supply section is equipped with two multi-winding toroidal core transformers along with Low ESR 105°C capacitors, ensuring very high efficiency.
The EP 1 D boasts extreme reliability thanks to the use of FR-4 double layer PCB material. 70µm thick copper traces in combination with robust copper bars are used to increase the current transfer in the power supply sections.
Power:
400W*1 4ohm
750W*1 2ohm
1000W*1 1ohm
linkade:
1500W*1 4ohm
1700W*1 2ohm
| |
|

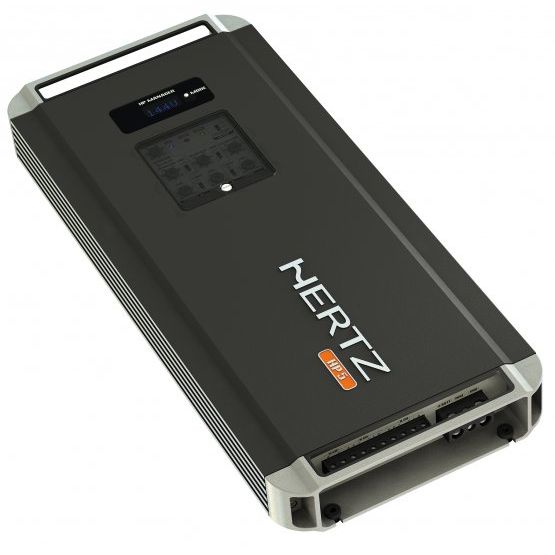

HI-POWER HP 5 Hertz HP 5 is an AB Class, five-channel amplifier with 980W (RMS) total power. Thanks to its 120W (RMS) X 4 (2 Ohm) and 500W (RMS) x 1 (2 Ohm), it is the best solution for Front + Rear + Subwoofer complete systems through the use of inside crossovers.
The whole HP line is equipped with many innovative functions which make it simply unique.
HP MANAGER™ is a system provided with a microprocessor which thanks to an LCD display controls and notifies about the amplifier working status and the audio system.
HP SPEAKER INPUT is an input realized with removable connectors. It allows you to connect the amplifier directly to the head unit speakers output and to turn the amplifier on automatically with no need of a remote turn on signal. Besides, thanks to it the HERTZ HP amplifiers can be employed also with head units that are not provided with pre-amplified outputs and with remote turn on signal, for extreme versatile interface.
HP RVC and RBC are a level remote control device and a low frequency remote equalizer, to manage and optimize the subwoofer response while comfortably driving.
Hertz HP 5 is designed for "no-compromise" installations. It is the best choice both for professionals and enthusiasts. Its design reflects the unmistakable Hertz style: black, robust, perfect cosmetics, giving concrete shape to all the power and dynamics which HP 5 is capable of.
Power:
80W*4 4ohm + 330W*1 4ohm
120W*4 2ohm + 500W*1 2ohm
240W*2 4ohm + 500W*1 2ohm
| |
|

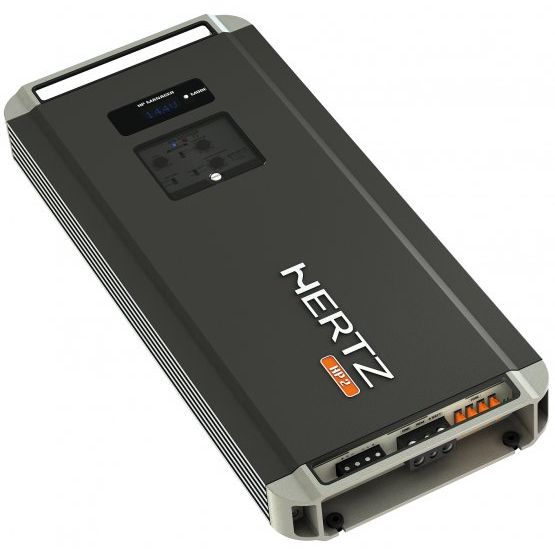

HI-POWER HP 2 Hertz HP 2 is an AB Class stereo amplifier with 370W (RMS) X 2 power on 4 ohm reaching 600W (RMS) X 2 on 2 Ohm. In bridged mode the Hertz HP 2 delivers 1200W (RMS) on 4 ohm for powerful subwoofer sections.
The whole HP line is equipped with many innovative functions which make it simply unique.
HP MANAGER™ is a system provided with a microprocessor which thanks to an LCD display controls and notifies about the amplifier working status and the audio system.
HP SPEAKER INPUT is an input realized with removable connectors. It allows you to connect the amplifier directly to the head unit speakers output and to turn the amplifier on automatically with no need of a remote turn on signal. Besides, thanks to it the HERTZ HP amplifiers can be employed also with head units that are not provided with pre-amplified outputs and with remote turn on signal, for extreme versatile interface.
Black, linear, compact design, combining with bursting power.
The result is an amplifier which wins in terms of both performance and cosmetics in whatever installations.
Power:
370W*2 4ohm
600W*2 2ohm
1200W*1 4ohm
| |
|

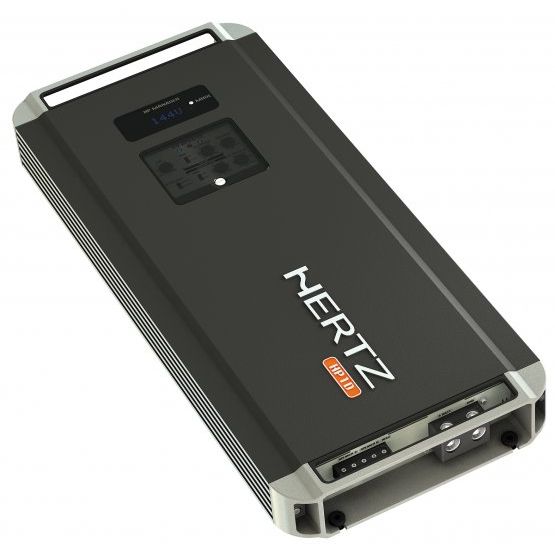

HI-POWER HP 1 D Hertz HP 1 D is a D Class mono amplifier with 2300W (RMS) power on 1 Ohm. The special feature HP LINK provides the ability of two amplifiers to operate in bridged mode to obtain extremely high powers. The whole HP line is equipped with many innovative functions which make it simply unique. HP MANAGER™ is a system provided with a microprocessor which thanks to an LCD display controls and notifies about the amplifier working status and the audio system. HP SPEAKER INPUT is an input realized with removable connectors. It allows you to connect the amplifier directly to the head unit speakers output and to turn the amplifier on automatically with no need of a remote turn on signal. Besides, thanks to it the HERTZ HP amplifiers can be employed also with head units that are not provided with pre-amplified outputs and with remote turn on signal, for extreme versatile interface. HP RVC and RBC are a level remote control device and a low frequency remote equalizer, to manage and optimize the subwoofer response while comfortably driving. Ideal to drive high power subwoofers, Hertz HP 1 D shows an exclusive and essential design: compact and linear, it fits any installation, with no limits to creativity.
Power:
700W*1 4ohm
1400W*1 2ohm
2300W*1 1ohm
Linkade:
2300W*1 4ohm
4000W*1 2ohm
| |
|
DLS TA2
ULTIMATE series TA2 är en 2-kanals förstärkare på nominellt 2 x 100 Watt där huvudmålet med hela konstruktionen varit att skapa den mest välljudande bilförstärkaren någonsin. Extremt dyra och exklusiva komponenter har valts i alla delar som har betydelse för ljudkvalitén.
| |
|
DLS A4 ULTIMATE series A4 är en 4-kanals förstärkare på nominellt 4 x 85 Watt med mycket goda prestanda. I 4 ohms mono bryggkoppling ger den 2 x 250 Watt. Förstärkaren är 1 ohms stabil
| |
|
|
